HADES Series video wall processor is a processor platform that has pure hardware architechture, high performance video image processing system without software operation, realizing multi windows splicing fucntion.

The processor combine high-definition video signal acquisition, real-time high-resolution digital image processing and high-end image processing such as 3D high-order digital filtering to provide powerful signal processing capabilities. This product uses a high-capacity high-speed FPGA array and CrossPoint digital multi-bus data routing as well as a switching processing mechanism to fundamentally guarantee full real-time processing and data consistency for all input sources. This is all achieved with no delay, no discretization and no frame loss which will give you the the perfect image.

Specifications

Chassis size

Slot Card Type

Input Interface

*Only selected Model support this type of slot card

 Output Interface

*Only selected Model support this type of slot card

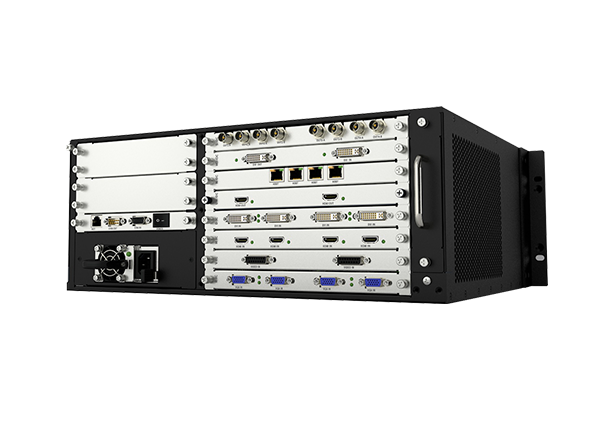

a: Power input port

    Drawer structure, support AC 100 ~ 240V / 50 ~ 60Hz input.

b: Network communication interface:

    Ethernet network connection port, dedicated for connection with upper computer.

c : RS-232 serial output

    Provide 1 independent RS-232 port (DB9 male) for connecting PC or central control to control the system.

d:  RS-232 serial input

    Provide 1 independent RS-232 port (DB9 female) for connecting PC or central control to control the system.

e:  Switch

     Power on and off switch.

f:   Input / output card slot

     Place the input and output cards.

With Tricolor’s Hades video wall process get the most source flexibility in the market with high-resolution.  Using our unique technology you get the most visual source flexibility, hardware simplicity, and high-performance processing and control. Distribute virtually unlimited content sources in real time without delay and loss of frame and data consistency.

Pure hardware modular design

Hades technology implies pure hardware design without any operation system which also avoids the X86 controller crash, blue screen, viruses and other common problems. This means you save money on proprietary hardware and it simplifies the complexity of your video wall system making it easier to troubleshoot and support. Save up to 40% in upfront costs by replacing a traditional proprietary video wall processor with Tricolor all series products.

Multi-Screen Group Management

It provides a unique experience of high resolution real-time total adaptation which can also support multiple groups of screens with different resolutions at the same time. It uses projection based display with a seamless drag and drop interface, schedule presets, create zones and manipulate sources with multi-window or picture in picture layouts.

4K

The design supports DL-DVI, HDMI 1.4, DP and 4K signal acquisition. It allows Hades to achieve a larger resolution image for more powerful display. It is perfectly compatible with Nvidia Mosaic and AMD Eyefinity technology. These features allow it to deliver incredible visual experience and content.

Signal Preview

Hades exclusive design supports a signal preview technology which allows all input signals in real-time in the control software. This prevents the operator from displaying the wrong signals on the video wall. The operator can also view the real time echo image of the video wall to improve the operator work and efficiency without the need to add proprietary hardware components.

Cross Media

The elegant design allows it to be used with the Cross Media visual operation system. Operator can control the processor through IPad. The convenience of using it with an IPad allows operator to manage screen display with the touch operation mode. It supports real-time preview of all signals on an IPad. This extraordinary feature of Mobius brings a unique and convenient experience to the operator.
