The HDBT Series are a set of transmitters and receivers that provide a cost-effective way to extend digital signals. It supports video signals up to 4K resolution, including 1080P/60 dark and 3D video. HDBaseT technology enables the reliable transmission of digital signals and supports up to 12-bit color depth, CEC pass-through and embedded HD anti-loss audio formats. Additionally, it maintains continuous EDID and HDCP DDC communication between the signal source and display, ensuring optimum compatibility and stable signal transmission between devices. To improve the ease of installation, the HDBT Series Transmitter and Receiver are both portable and can be concealed behind a desk or a small display. The HDBT series transmitter can be connected to the power supply on either the transmistter or receiver and it will remotely power the other end.


Acknowledged by

Features

· Supported HDBaseTLite technology

· Support for 480P to 4K/2k and support for 3D video

· Customizable output resolution for each channel

· Input channel EDID update configuration

· Automatic protection in the event of power disruption

· Bidirectional IR and RS232 control functions

· Support POC two way power supply, either transceiver and receiver can be connected to power


Specifications



Resolution Range

Highest   data rate

10.2Gbps   (3.4Gbps per color)

Interface   Protocol

HDMI1.4

Color   depth

2560x1600@60Hz or 4K (4096x2160@30Hz,   backward compatible

HDCP

Support

Cable   requirements

Solid wire 24AWG or better

Support   audio format

PCM 2CH, LPCM 5.1, LPCM 7.1, Dolby Digital,   DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos

Support   bit rate

24-bit

HDBaseT   Lite technology

Support

EDID   update

Support

3D   video

Support

Control

Network   / infrared / serial port

Use Environment

0°C   to 50°C

Size

120x76x18   (mm)

Power Consumption

10W

Powered by

External   24V 0.75A



Product Model



Product model / specification

HDMI-104

HDMI-102

DVI-101

Video interface

HDMI

HDMI

DVI

Number of inputs

1

1

1

Number of outputs

1 HDMI

1 HDMI

1 DVI

2K @ 60Hz

YES

YES

YES

4K @ 30Hz

YES

YES

Audio separation

RS232

YES

IR

YES

YES

Transmission distance

70M

100M

70M

HDbaseT protocol

YES

YES

YES

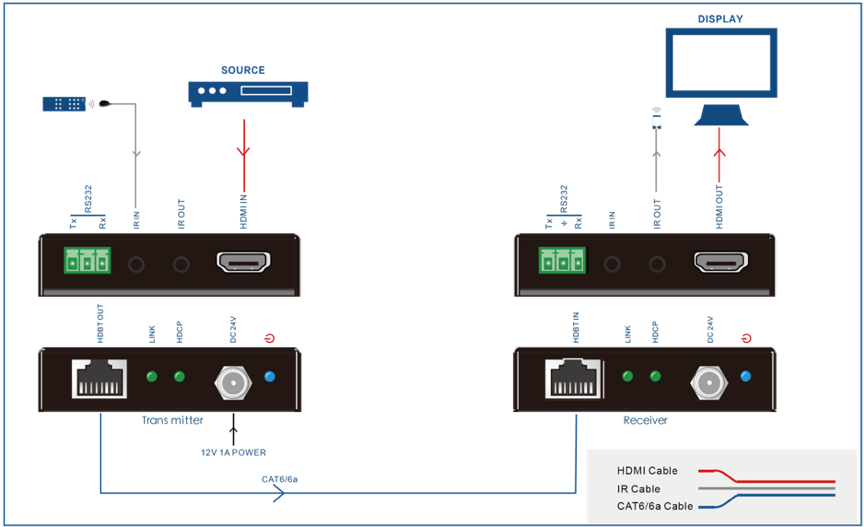

Transmitter

         Screen Shot 2019-12-20 at 10.59.08 AM.png

A: HDBT OUT - Connect a cat6/6a cable from here to an HDMI-104 receiver.


B: Link Indicator

a)         Solid green, good signal quality from HDBaseT port.

b)        Blink green, HDBaseT port is disconnected or not transmitting signal.

c)         No light, no signal is being received from the HDBaseT port.


C: HDCP Indicator

a)         Solid green, HDBaseT port is transmitting video with HDCP.

b)        Blink green, HDBaseT port is transmitting video without HDCP.

c)         No light, no video is being received from the HDBaseT port.


D: Power Port - Connect included power adapter here.


E: Power Indicator

a)         Solid blue, transmitter is powered on.

b)        No light, transmitter is not powered.


F : RS232 Port - Connect a serial RS232 signal for bi-directional RS232 communication


G:  R IN - Connect an IR receiver, the IR signal received from this port will be sent out via HDBaseT receiver.


H:  IR OUT - Connect an IR emitter, the triggered IR signals are received from HDBaseT receiver.


I : HDMI IN - Connect an HDMI source here ex. Blu-ray player, cable box, etc.

Receiver

Screen Shot 2019-12-20 at 11.02.12 AM.png

A:  HDBT OUT - Connect a cat6/6a cable from here to an HDMI-104 transmitter.


B:  Link Indicator

a)         Solid green, good signal quality from HDBaseT port.

b)        Blink green, HDBaseT port is disconnected or not transmitting signal.

c)         No light, no signal is being received from the HDBaseT port.


C: HDCP Indicator

a)         Solid green, HDBaseT port is transmitting video with HDCP.

b)        Blink green, HDBaseT port is transmitting video without HDCP.

c)         No light, no video is being received from the HDBaseT port.


D: Power Port - Connect included power adapter here.


E: Power Indicator

a)         Solid blue, transmitter is powered on.

b)        No light, transmitter is not powered.


F:  RS232 Port - Connect a serial RS232 signal for bidirectional RS232 communication.


G:  IR IN - Connect an IR receiver, the IR signal received from this port will be sent out to HDBaseT transmitter.


H:   IR OUT - Connect an IR emitter, the triggered IR signals are received from HDBaseT transmitter.


I:  HDMI IN - Connect HDMI display here.


Ultra 4K

HDBaseT has been designed to use 4K Resolution. It also includes a range of features beyond Resolution, such as: High Dynamic Range (HDR), Wider Color Spectrum, Color Bit Depth, Immersive Audio and more. These performance advances enable unprecedented visual experience, content and other devices to fully replicate the richness of life’s sights and sounds, and allow viewers to more accurately experience the content creator’s vision.


Pure hardware modular design

HDBaseT technology implies pure hardware design without any operation system which also avoids the X86 controller crash, blue screen, viruses and other common problems. This means you save money on proprietary hardware and it simplifies the complexity of your video wall system making it easier to troubleshoot and support. Save up to 40% in upfront costs by replacing a traditional proprietary video wall processor with Tricolor all series products


POC bidirectional power supply,

only one end of the transmitter and receiver needs to be connected to the power supply;
