Product Description

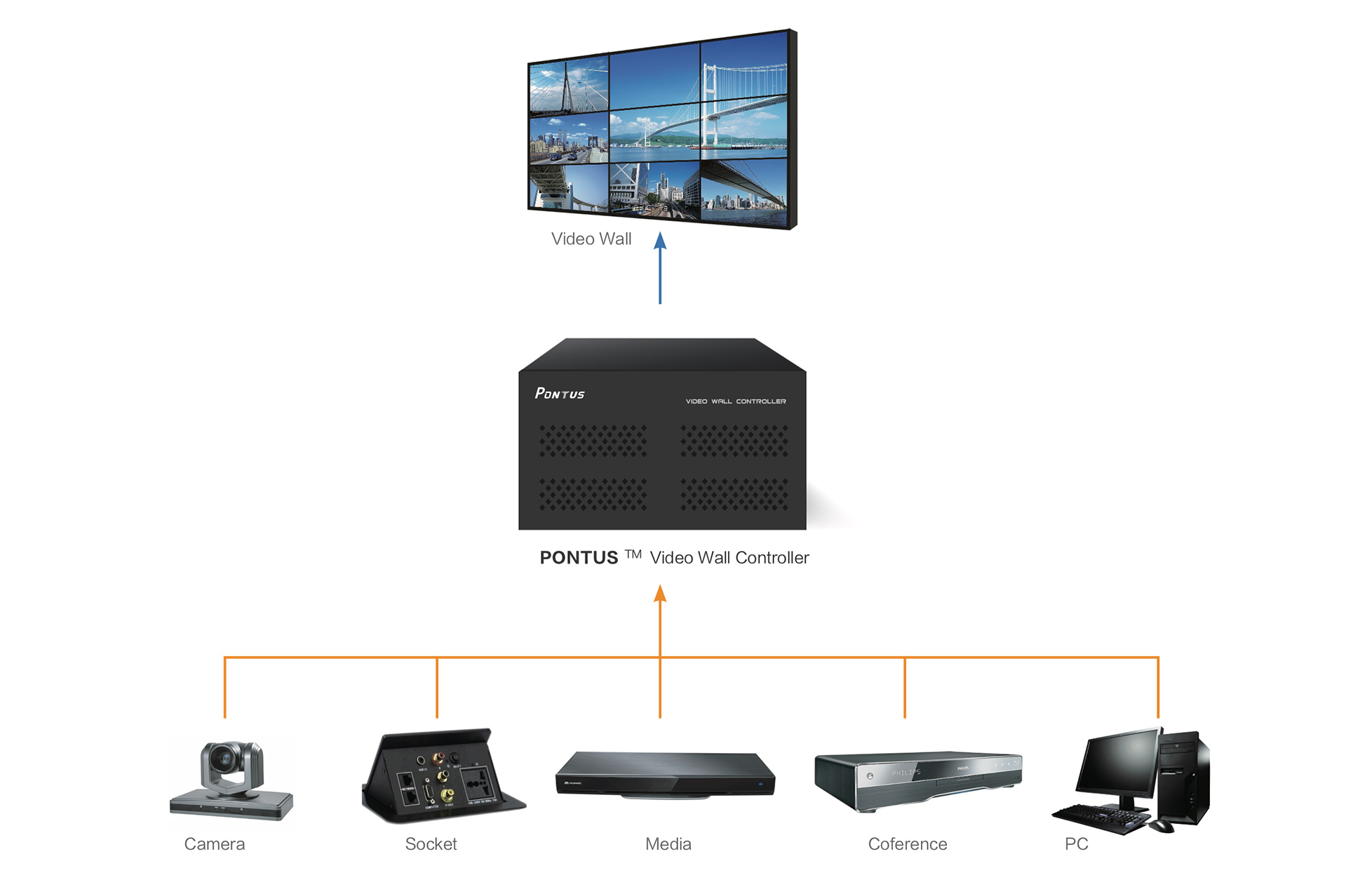

Pontus video wall controller is a new high-performance video image processing workstation with pure hardware architecture(without operating system), which can display multiple dynamic images on multiple screens and realize the function of multi-window splicing. The processing mechanism of large capacity, high-speed FPGA and CrossPoint switch, ensure real-time processing of all input signals and data consistency. At the same time, it has high stability and fast start- up speed and supports 365 x 24 hours of uninterrupted and stable operation.
Pontus video wall controllers are available in 1.5U, 3U and 5U models. The card is designed with card-in-card structure and can be flexibly configured according to requirements. It support the splicing display of 32 large screens. Support DVI signal, HDMI signal format input and output, compatible with various common resolutions, and can realize custom unconventional resolution, with a single output resolution of 1920 x 1200 @ 60Hz.
· Hot swappable I/O cards
· Seamless switching , no black field when switching signals
· Input port EDID editing
· Multiple scene saving and looping
· Character overlay function on input signal channels
· Partial screen enlargement
· Signal cropping function
· Picture scaling
· Picture abnormality correction
Specifications
Input Card
HDMI Input Card | DVI Input Card | ||
Standard | HDMI 1.3 | Standard | DVI-D digital T.M.D.S. signal in DVI 1.0 |
Resolution | Up to 1920 x 1200 | Resolution | Up to 1920 x 1200 |
Color Depth | 32bits / pixel | Color Depth | 32bits / pixel |
HDCP | Yes | Customised EDID | Yes |
Customised EDID | Yes | Signal Level | T.M.D.S. 2.9V ~ 3.3V |
Data Rate | 4.95 Gbps | Data Rate | 4.95 Gbps |
Physical Port | HDMI Type A | Physical Port | 24+5 pins / DVI-I |
Output Card
HDMI Output Card | DVI Output Card | ||
Resolution | Up to 1920 x 1200 | Standard | DVI-D digital T.M.D.S. signal in DVI 1.0 |
Standard | HDMI 1.3 | Resolution | Up to 1920 x 1200 |
Color Depth | 32bits / pixel | Color Depth | 32bits / pixel |
Transmission Distance | 15 m | Transmission Distance | 15 m |
Data Rate | 4.95 Gbps | Data Rate | 4.95 Gbps |
Physical Port | HDMI Type A | Physical Port | 24+5 pins / DVI-I |
Chassis
Size | Dimension（mm） | Power | Card Slots |
1.5U | 440(W)x 320(D)x 66(H) | 100-240VAC, 50-60Hz, ＜ 100W | 2 Input Slots, 2 Output Slots |
3U | 440(W)x 320(D)x 130.5(H) | 100-240VAC, 50-60Hz, ＜ 200W | 4 Input Slots, 4 Output Slots |
5U | 440(W)x 320(D)x 219.4(H) | 100-240VAC, 50-60Hz, ＜ 550W | 8 Input Slots, 8 Output Slots |
Instruction:
a . LAN connection (Ethernet connector): for IP control of the system
b . Remote RS-232 port：RS232 control signal input interface
c . Control card indicator:
1. Undefinition, Always bright
2. Undefinition, Always bright
3. Power LED, After the power is turned on and the switch is turned on, it always lights up
4. Run LED, The program blinks every second after it starts
d . Power swith: Power on / off switch of equipment
e . Input boards space: Support to plug in HDMI or DVI input board to access HDMI or DVI signals.
f . Output boards space: Support to insert HDMI or DVI output board to output HDMI or DVI signals.
g. Power input port of 3U: AC 110 V ~ 240 V 50 / 60 Hz
h. Power input port of 5U: Drawer structure, AC 110 V ~ 240 V 50 / 60 Hz
Features
As a high-performance video image processing workstation, Pontus video wall processor can display multiple dynamic pictures on multiple screens and implement the function of multi-window stitching.
Seamless switching
No black field during signal switching, enabling seamless switching and fast display of video signals
Character overlay
Supports character overlay settings for any input signal source, including character size, color, display position, etc.
Image Cropping
Supports cropping settings for any input signal source, perfectly solving the problem of black edge display of the signal source
Preservation and recall of plans
Supports automatic saving and quick recall of multiple scenes, and automatic polling of multiple scenes
Support ipad control
Support scenes call function
EDID
Read, edit and customize EDID
Multi-screen segmentation
Support multi-screen split display, set any desired window layout
Multi-screen roaming and zooming
Supports any window for roaming and zoom display
Multi-screen overlay
Support any window top or bottom
