This product is a high performance 4 by 1 Quad Multi-Viewer with seamless switcher. It supports four High definition input source display on one screen, and have three multi-view effect mode. As a switcher, it can also seamlessly switch the four HD input freely. The product can be controled by various ways, through the front panel button control, IR control, RS232 control etc. The product provides an S/PDIF link to output the HDMI source audio at the same time. In addition,this prodcut have basic version and extender version.The Extender version can extend the video and audio signals over single 50m CAT5e/6 with Bi-directional IR control.
· Compliant with HDMI 1.3a,HDCP 1.2；
· Supports multiplexed HDMI 4-input and 1-output；
· Supports up to 1080p High Definition resolution；
· Support 4by1 Quad Multi-viewer and seamless switch；
· Support scaler up,scaler down function；
· Support multi output resolution；
· Support digital audio format LPCM/AC3/DTS
· Support button,IR,RS232 etc various controlled ways；
· IR system allowing for control of source at display end；
· Allows HDMI Audio/Video and IR signals to be transmitted over a single Cat5e/6 cable(Extender Version).
TMV-H
Specifications
Video Bandwidth | 2.25Gbps |
Input Ports | 4 × HDMI (Female type),1x RS232; |
Output Ports | 1 × HDMI (Female type),1xRCA,1xUTP(Extenderversion) |
Audio output | PCM2, 5.1, 7.1CH, Dolby 5.1, DTS5.1 |
Input Resolution | 480i60Hz,480p60Hz,576i50Hz,576p50Hz,720p50/60Hz, 1080i50/60Hz,1080p24/30/50/60Hz,800x600@60, 1024x768@60,1280x720@60,1920x1080@60; |
Output Resolution | 1080p,1080i,720p,1024x768,1360x768 |
ESD Protection | Human Body model: ±8 kV (air-gap discharge) ±4 kV (contact discharge) |
Power Supply | 12 V/2.5A DC (US/EU standards, CE/FCC/UL certified) |
Dimensions | 118mm(W) X 250mm (D) X 32mm(H) |
Weight | 750 g |
Chassis Material | Metal |
Silkscreen Color | Black |
Operating Temperature | 0 °C~40 °C/ 32 °F~104 °F |
Storage Temperature | −20 °C ~ 60 °C/−4 °F ~140 °F |
Relative Humidity | 20~90 % RH (non-condensing) |
Specifications
Product model / specification | TMV-H-0201 | TMV-H-0401 | TMV-UH-0402 | TMV-H2-0401 | TMV-UH-0901 | TMV-H-1601 |
Video interface | HDMI | HDMI | HDMI | HDMI | HDMI | HDMI |
Number of inputs | 2 | 4 | 4 | 4 | 9 | 16 |
Number of outputs | 1 | 1 | 1 HDMI,1 VGA | 1 HDMI,1 VGA | 1 | 1 |
2K @ 60Hz | YES | YES | YES | YES | YES | YES |
4K @ 30Hz | ➖ | ➖ | YES | ➖ | YES | ➖ |
EDID Management | ➖ | ➖ | YES | ➖ | YES | ➖ |
Audio separation | ➖ | YES | YES | YES | YES | ➖ |
IR | YES | YES | YES | YES | YES | YES |
RS232 | YES | YES | ➖ | ➖ | YES | YES |
Output backup | ➖ | ➖ | YES | YES | ➖ | ➖ |
Front panel
1. ON/OFF: Power on/off switch.
2. SERVICE: For factory use only.
3. IR : Remote control receiver window.
4. POWER LED: This red LED illuminates when the device is connected with power supply.
5. IN1,2,3,4 LED: These red LED illuminates when the output select to the corresponding input.
6. INPUT BUTTON: Press this button to select the input source.
7. MODE BUTTON: Press this button to select the multi-view display mode.
※see the detail description below(chapter 5.7).
8. RESO BUTTON: Press this button to select the HDMI output resolution.

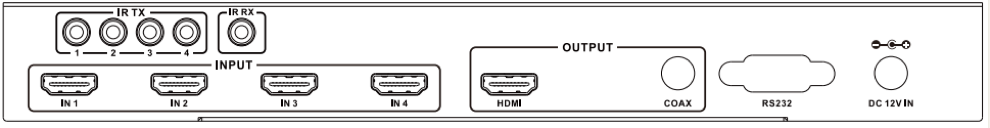

Rear panel (Basic Version)
1. Input: These slot is where you connect the HDMI source output from DVD, PS3,Set-top Box and Note Book.
2. OUTPUT: The HDMI is where you connect the HDTV or monitor with HDMI cable for input source display.The Coax is where you connect to the amplifier with coaxial cable.
3. IR RX: Connect to the IR Receiver for IR signal reception. Ensure that remote being used is within the direct line-of-sight of the IR receiver.
4. IR TX: Connect the IR Blaster cable included in the package for IR signal transmission. Pace the IR blaster in direct line-of-sight of the equipment to be controlled.
5. RS232: Connect the RS232 port to the PC or notebook by RS232 Cable.
6. DC 12V: Plug the 12V DC power supply into the unit and connect the adaptor to AC wall outlet.
Ultra 4K
TMV has been designed to use with 4K Resolution video wall. It also includes a range of features beyond Resolution, such as: High Dynamic Range (HDR), Wider Color Spectrum, Color Bit Depth, Immersive Audio and more. The advanced performance enable unprecedented visual experience, and allow viewers to have an accurate experience of content vision.
Multiple display modes
The quad multi-viewer has 3 display modes.
